AirPOC-4 High Throughput Rapid Nucleic Acid Amplification Analyzer

Four independent detection modules, addressing diverse POCT needs with great flexibility.
Contact Us

Introduction

AirPOC-4 is a rapid fluorescence PCR device designed on the principles of AirPOC amplification. It features four independent detection modules to meet diverse bedside POCT needs. The device is equipped with a high-performance touch screen, Wi-Fi, Type-C, and USB interfaces for various data transmission modes.

Product Features

Fast and robust

Providing reliable data using PCR technology, the gold standard method in molecular diagnostics.

Ultra-high-resolution fluorescence signal detection allows for precise differentiation of changes in fluorophore concentration at pmol level, significantly enhancing detection sensitivity.

The accompanying reagents can complete DNA target detection in as fast as 15 minutes, improving diagnostic and therapeutic efficiency.

User-friendly, a real molecular POCT

Four independent detection modules, controlled and operated independently, allowing for on-demand sample testing and flexible handling of various requirements.

Built-in barcode/QR code reader for easy and error-free sample as well as testing information input.

High-performance touchscreen for simple and effortless operation during testing.

Flexible applications to meet diverse needs

Four fluorescence channels to support multiple target detection in a single sample.

Compact in size。

Fully enclosed reaction process that ensures safety and eliminates contamination without the need for a specialized laboratory environment.

Product Information

AirPOC-4 High Throughput Nucleic Acid Rapid Amplification Analyzer
Size
247mm(L)x160mm(W)x75mm(H)
Compatible consumables
AirPOC tube
Communication
Type-C/Wifi/USB
Control
Touchscreen/AirPOC analyzer (PC program)
Detection module
4 independent modules
Maximum daily testing throughput
384
Scanning device
Scanner that supports both 1D and 2D codes
Analysis mode
Qualitative
Optical detection system
Excitation light source
high-performance LED
Dye compatibility
FAM\FITC\VIC\HEX\ROX\CY5
Number of optical channels
Up to 4 channels simultaneously
Thermal cycling system
Temperature control mode
PWM temperature control
Temperature range
±0.5℃
Operating conditions
Temperature
15℃-35℃
Humidity
20%-85%
*Assuming a single test takes 15 minutes

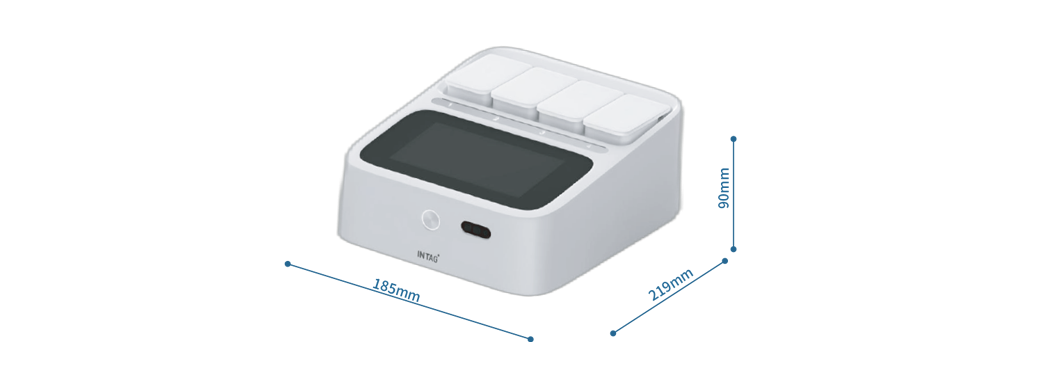

Product Size
